Drilling equipment
Drilling rigs for demanding ground conditions
Explore water well, reverse circulation, core exploration, photovoltaic piling, and truck-mounted drilling equipment. Each machine is presented as an individual model with readable, selectable technical data.
Browse the range
Choose a machine family
Search by model, application, or family.
Catalogue family
Water well drilling rigs
Water well drilling rigs for shallow, medium-depth, and deep water access work, with crawler configurations and drilling methods documented in the catalogue.

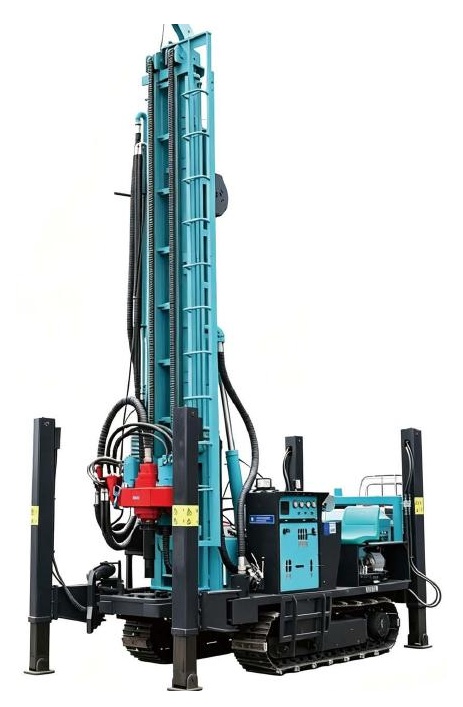

XV-W180m
Typical use: Shallow water well drilling and water access work.
A compact hydraulic water well drilling rig with a 180 m drilling depth, diesel power, and a small footprint for easier movement. The catalogue describes strong climbing capability and suitability for shallow water well work.
| Drilling depth | 180 m |
|---|---|
| Hole diameter | 130-254 mm |
| Main engine power | 77.3 kW |
| Engine brand | To confirm |
| Total weight | 2.7 t |
| Working air pressure | 1.7-2.5 MPa |
| Air consumption | 17-31 m3/min |
| Drill pipe diameter | 76 / 89 mm |
| Drill pipe length | 1.5 / 2.0 m |
| One-time advance | 2.4 m |
| Walking speed | 2.5 km/h |
| Climbing angle | 30 |
| Rig lifting force | 15 t |
| Swing speed | 45-65 rpm |
| Swing torque | 4000-4600 N m |
| Dimensions | 2300 x 1200 x 1900 mm |

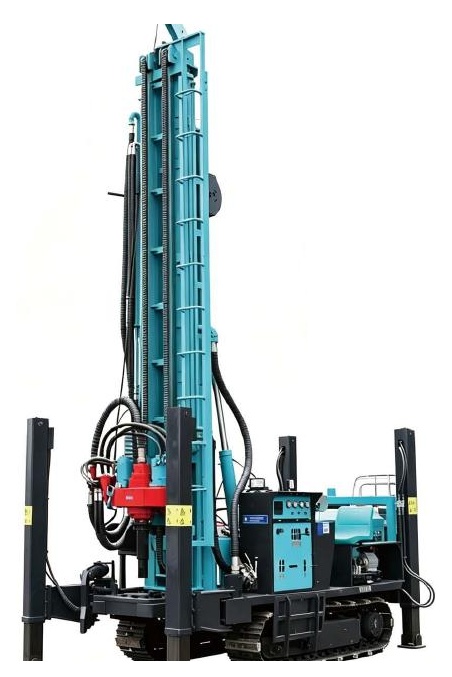

XV-W200m
Typical use: Small and medium water well drilling projects.
A light and flexible hydraulic water well drilling rig designed for small and medium water well projects. The catalogue notes air-water dual use, good climbing performance, stability, and durability.
| Drilling depth | 180 m |
|---|---|
| Hole diameter | 130-254 mm |
| Main engine power | 77.3 kW |
| Engine brand | To confirm |
| Total weight | 2.7 t |
| Working air pressure | 1.7-2.5 MPa |
| Air consumption | 17-31 m3/min |
| Drill pipe diameter | 76 / 89 mm |
| Drill pipe length | 1.5 / 2.0 m |
| One-time advance | 2.4 m |
| Walking speed | 2.5 km/h |
| Climbing angle | 30 |
| Rig lifting force | 15 t |
| Swing speed | 45-65 rpm |
| Swing torque | 4000-4600 N m |
| Dimensions | 2300 x 1200 x 1900 mm |
XV-W350m
Typical use: Water well drilling, geological exploration, loose layers, and bedrock.
A crawler-mounted water well drilling rig with rotary, DTH hammer, and mud drilling methods. Its crawler layout is described as suitable for loose layers and bedrock, with a 350 m maximum depth.
| Maximum hole depth | 350 m |
|---|---|
| Drilling diameter | 105-273 mm |
| Engine | 92 kW; engine brand To confirm |
| Total machine weight | 8 t |
| Recommended working air | 1.2-3.5 MPa |
| Drill pipe length | 3 / 6 m |
| Recommended drill pipe diameter | 89 / 102 / 114 mm |
| Axial pressure | 5 t |
| Lifting force | 16 t |
| Power head stroke | 6.6 m |
| Maximum rotary torque | 8000-16000 N m |
| Maximum rotational speed | 100-320 rpm |
| Winch lifting force | 1.5 t |
| High support retraction | 1.5 m |
| Travel speed | 4.5 km/h |
| Climbing ability | 24 |
| Oil pump | 40 + 40 + 20 |
| Overall dimensions | 3900 (4350) x 1850 x 2450 mm |
| Adaptation conditions | Loose layer and bedrock |
| Drilling method | Hydraulic rotary, DTH hammer, or mud drilling |

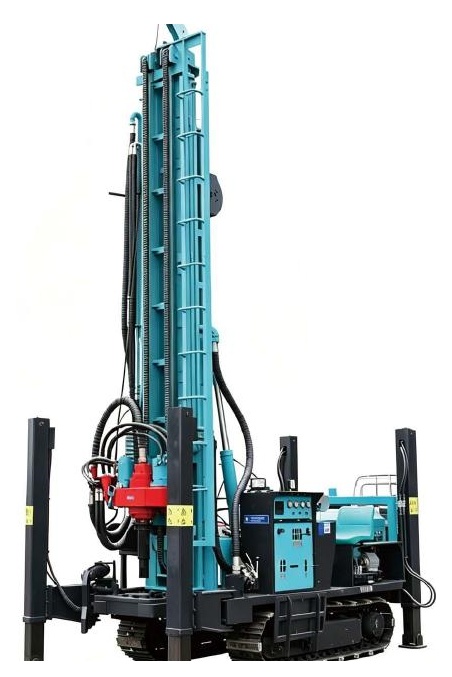

XV-W450m
Typical use: Deep water wells and geological exploration.
A crawler water well drilling rig for deeper drilling, with a stated maximum depth of 450 m and a 105-325 mm bore diameter range. The catalogue describes foam drilling for efficient slag removal and a flexible crawler chassis for complex terrain.
| Maximum hole depth | 450 m |
|---|---|
| Drilling diameter | 105-325 mm |
| Engine power | To confirm (description: 110 kW; technical table: 75-130 kW) |
| Engine model | 6108; engine brand To confirm |
| Total machine weight | 9.2 t |
| Recommended working air | 1.2-3.5 MPa |
| Drill pipe length | 3 / 6 m |
| Recommended drill pipe diameter | 89 / 102 / 114 mm |
| Axial pressure | 8 t |
| Lifting force | 20 t |
| Power head stroke | 6.6 m |
| Maximum rotary torque | 8000-16000 N m |
| Maximum rotational speed | 100-320 rpm |
| Winch lifting force | 2 t |
| High support retraction | 1.5 m |
| Travel speed | 4.5 km/h |
| Climbing ability | 24 |
| Oil pump | 63 + 63 + 25 |
| Overall dimensions | 3900 (4350) x 1850 x 2450 mm |
| Adaptation conditions | Loose layer and bedrock |
| Drilling method | Hydraulic rotary, DTH hammer, or mud drilling |

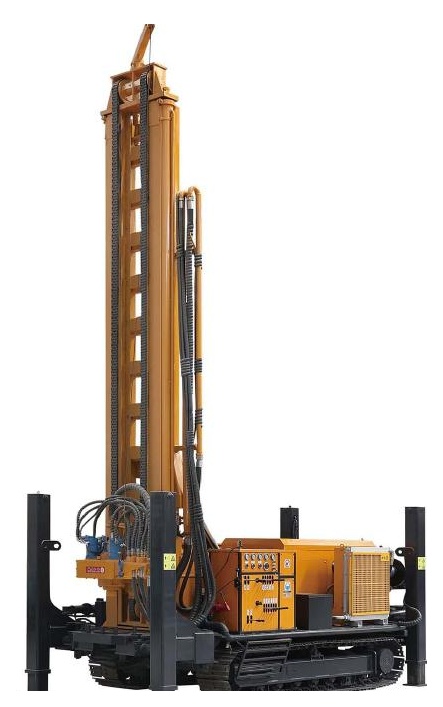

XV-W660m
Typical use: Deep well drilling and geological exploration in demanding sites.
A crawler water well drilling rig with a 325 mm maximum diameter, high lifting force, four hydraulic outriggers, and a crawler chassis intended for complex working conditions.
| Engine power | 280 kW; engine brand To confirm |
|---|---|
| Hydraulic pump | 160 + 160 + 63 + 32 |
| Power motor | 500 + 500 |
| Torque | 8000-16000 N m |
| Lifting force | 36 t |
| Maximum rotational speed | 150-300 rpm |
| Hydraulic outriggers | 4 |
| Winch lifting force | 3 t |
| Maximum diameter | 325 mm |
| Overall dimensions | 4750 (5250) x 2150 x 2450 mm |
| Total weight | 11.5 t |

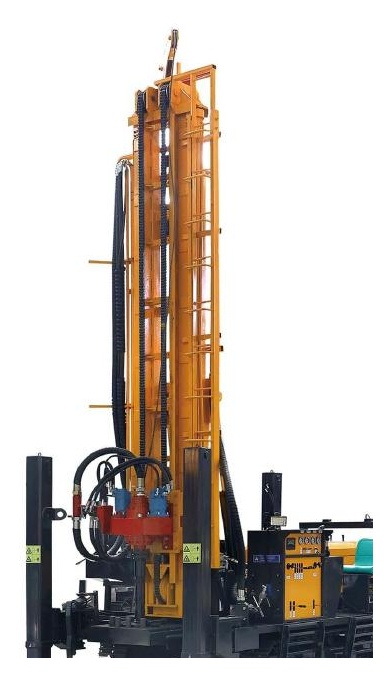

XV-W1000m
Typical use: Deep water wells and geological exploration with pneumatic or hydraulic drilling.
A crawler water well drilling rig described for pneumatic drilling to 1000 m and hydraulic drilling to 1200 m. The catalogue states a 146-350 mm drilling diameter, a 600-type mud pump, and dual pneumatic-hydraulic drilling modes.
| Pneumatic drilling depth | 1000 m |
|---|---|
| Hydraulic drilling depth | 1200 m |
| Drilling diameter | 146-350 mm |
| Engine | P12-280 turbocharged engine; brand To confirm |
| Drill pipe diameter | 89 / 102 / 114 mm |
| Drill pipe length | To confirm (catalogue text: 2003/6/9) |
| Four-connection pump | 160 + 160 + 63 + 32 |
| Rotary motor | 500 + 500 |
| Torque | To confirm (catalogue text: 5000-1200 N m) |
| Lifting force | 40 t |
| Power head stroke | 9.6 m |
| Pneumatic drilling speed | 150-300 rpm |
| Hydraulic drilling speed | 400-650 rpm |
| Mud pump | Equipped with a 600-type mud pump |
| Total weight | 13.2 t |
| Overall dimensions | 6500 x 2200 x 2700 mm |
Catalogue family
Reverse circulation drilling rigs
Air-lift reverse circulation rigs for mine sampling, water well drilling, and engineering geology where fast slag removal and field mobility matter.

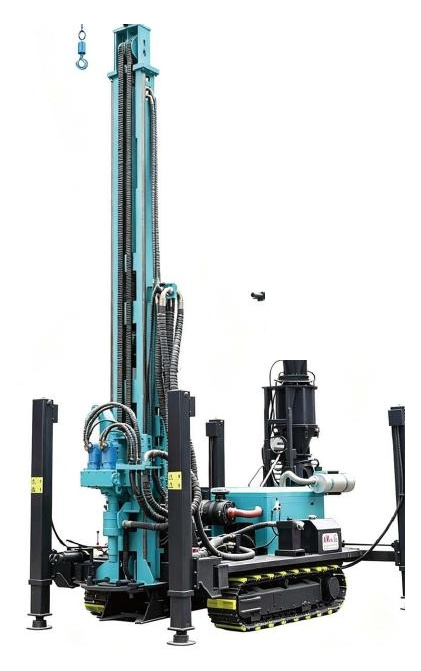

XV-R200m
Typical use: Mine sampling, water well drilling, and engineering exploration for medium-shallow boreholes.
A 200 m-class RC rig using air-lift reverse circulation drilling. The catalogue highlights fast slag removal, crawler mobility, hydraulic outriggers, and stable positioning for medium-shallow drilling work.
| Drilling depth | 200 m |
|---|---|
| Hole diameter | 40-254 mm |
| Equipped capacitor | 77.3 kW |
| Engine brand | To confirm |
| Total weight | 6 t |
| Drill pipe diameter | 89 / 102 mm |
| Drill pipe length | 1.5 / 2.0 / 3.0 m |
| One-time advance | 3.3 m |
| Rapid rise speed | 30 m/min |
| Fast feeding speed | 60 m/min |
| Walking speed | 2.5 km/h |
| Climbing angle | 30 |
| Width of loading | 2.4 m |
| Hoisting force of winch | 1.5 t |
| Working air pressure | 1.7-2.5 MPa |
| Air consumption | 17-31 m3/min |
| Swing speed | 45-70 rpm |
| Swing torque | 4700-6600 N m |
| High leg stroke | 1.4 m |
| Drilling rate | 10-35 m/h |
| Equipped with hammer | Medium and high wind pressure series |
| Dimensions | 6000 x 1750 x 2350 mm |
| Rig lifting force | 13 t |

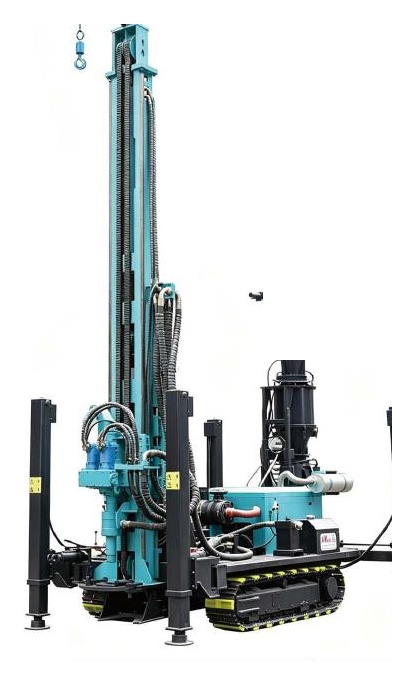

XV-R300m
Typical use: Mine sampling, deep water well drilling, and engineering geology.
A reverse circulation drilling rig described at 300 m class, using an air-lift system for high slag-removal efficiency. Its crawler chassis is presented for rough terrain and demanding field work.
| Drilling depth | To confirm (description states 300 m; technical table states 200 m) |
|---|---|
| Hole diameter | 40-254 mm |
| Equipped capacitor | 77.3 kW |
| Engine brand | To confirm |
| Total weight | 6 t |
| Drill pipe diameter | 89 / 102 mm |
| Drill pipe length | 1.5 / 2.0 / 3.0 m |
| One-time advance | 3.3 m |
| Rapid rise speed | 30 m/min |
| Fast feeding speed | 60 m/min |
| Walking speed | 2.5 km/h |
| Climbing angle | 30 |
| Width of loading | 2.4 m |
| Hoisting force of winch | 1.5 t |
| Working air pressure | 1.7-2.5 MPa |
| Air consumption | 17-31 m3/min |
| Swing speed | 45-70 rpm |
| Swing torque | 4700-6600 N m |
| High leg stroke | 1.4 m |
| Drilling rate | 10-35 m/h |
| Equipped with hammer | Medium and high wind pressure series |
| Dimensions | 6000 x 1750 x 2350 mm |
| Rig lifting force | 13 t |
Catalogue family
Core drilling rigs
Crawler-mounted full hydraulic core exploration rigs for mineral prospecting and engineering investigation, from 600 m to 1600 m catalogue depths.
XV-C600
Typical use: Mineral prospecting and engineering investigation in mountains and mining areas.
A crawler-mounted full hydraulic core exploration rig with a maximum core drilling depth of 600 m. The catalogue describes powerful torque output, high core sampling integrity, flexible mobility, and stable operation.
| Drilling capacity | 200-700-900 |
|---|---|
| Diameter | HTW-NTW-BTW |
| Rated pressure | 21 |
| Engine | To confirm |
| Type | Six-cylinder turbo |
| Motor type | Plunger motor |
| Transmission method | Spindle box direct |
| Tower | Touch-bottom integrated |
| Drilling angle | 45-90 |
| Lifting force | 16 t |
| Feed force | 14 t |
| Lifting force | 1000 kg |
| Rope arrangement method | Rotation winding |
| Walk | Manual + remote control |
| Maximum climbing angle | 45 |
| Mud pump | To confirm |
| Rated flow | 100 L/min |
| Dimensions | 4000 x 2000 x 1800 mm |
| Machine weight | 5.6 t |
| Cooling method | Air cooling / water |
XV-C1000
Typical use: Mineral prospecting and engineering investigation in complex field conditions.
A crawler-mounted full hydraulic core exploration rig with a maximum core drilling depth of 1000 m. It is described for high-integrity core sampling, flexible mobility, and stable operation in mountains and mining areas.
| Drilling capacity | 500-1000-1200 |
|---|---|
| Diameter | HTW-NTW-BTW |
| Rated pressure | 23 |
| Engine | To confirm |
| Type | Six-cylinder turbo |
| Motor type | Plunger motor |
| Transmission method | Spindle box direct |
| Tower | Touch-bottom integrated |
| Drilling angle | 40-90 |
| Lifting force | 19 t |
| Feed force | 16 t |
| Lifting force | 1200 kg |
| Rope arrangement method | Rotation winding |
| Walk | Manual + remote control |
| Maximum climbing angle | 45 |
| Mud pump | To confirm |
| Rated flow | 100 L/min |
| Dimensions | 3500 x 2000 x 2300 mm |
| Machine weight | 6 t |
| Cooling method | Air cooling / water |

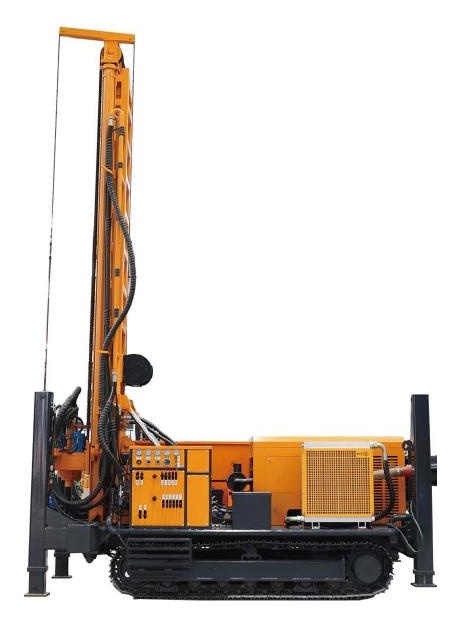

XV-C1200
Typical use: Mineral prospecting and engineering investigation at depths up to 1200 m.
A crawler-mounted full hydraulic core exploration rig with a maximum core drilling depth of 1200 m. The catalogue emphasizes powerful torque, high core sampling integrity, flexible mobility, and stable field operation.
| Drilling capacity | 600-1200-1400 |
|---|---|
| Diameter | HTW-NTW-BTW |
| Rated pressure | 30 |
| Engine | To confirm |
| Type | Six-cylinder turbo |
| Motor type | Plunger motor |
| Transmission method | Spindle box direct |
| Tower | Touch-bottom integrated |
| Drilling angle | 40-90 |
| Lifting force | 22 t |
| Feed force | 18 t |
| Rope capacity | 1500 m |
| Rope arrangement method | Rotation winding |
| Walk | Manual + remote control |
| Maximum climbing angle | 45 |
| Mud pump | To confirm |
| Rated flow | 120 L/min |
| Dimensions | 3500 x 2000 x 2300 mm |
| Machine weight | 6.1 t |
| Cooling method | Air cooling / water |

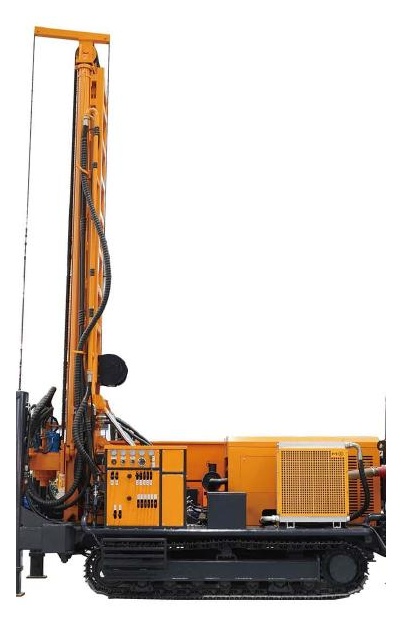

XV-C1600
Typical use: Deep mineral prospecting and engineering investigation at depths up to 1600 m.
A crawler-mounted full hydraulic core exploration rig with a maximum core drilling depth of 1600 m. The catalogue describes high-integrity core sampling, strong torque output, and a crawler platform for difficult field conditions.
| Drilling capacity | 1000-1600-2000 |
|---|---|
| Diameter | HTW-NTW-BTW |
| Rated pressure | 28 |
| Engine | To confirm |
| Type | Four-cylinder turbocharged |
| Motor type | Plunger motor |
| Transmission method | Fast 6-speed transmission |
| Tower | Touch-bottom integrated |
| Drilling angle | 40-90 |
| Lifting force | 20 t |
| Feed force | 10 t |
| Rope capacity | 1600 m |
| Rope arrangement method | Rotation winding |
| Walk | Manual + remote control |
| Maximum climbing angle | 45 |
| Mud pump | To confirm |
| Rated flow | 250 L/min |
| Dimensions | 4500 x 2000 x 2700 mm |
| Machine weight | 9 t |
| Cooling method | Air cooling / water |
Catalogue family
Photovoltaic pile driver
A crawler photovoltaic pile driver for solar power station pile foundation construction and complex terrain.

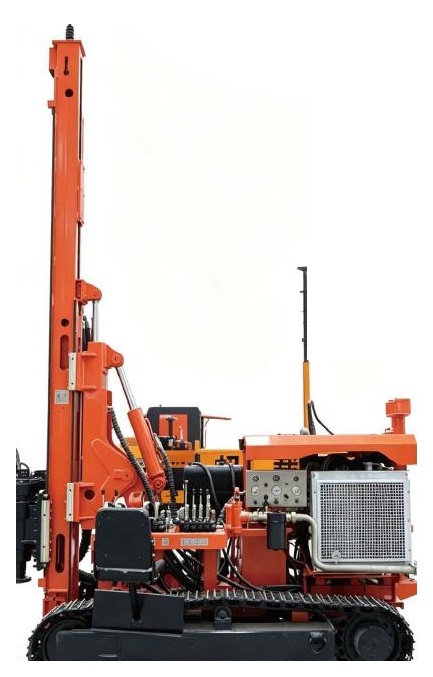

XV-P680
Typical use: Pile foundation construction for photovoltaic power stations.
An upgraded DH-680F crawler full hydraulic photovoltaic pile driver. The catalogue describes a multi-angle adjustable sliding frame for complex mountain terrain, with a 90-500 mm drilling diameter range and 0-20 m spiral drill rod depth.
| Drilling rig model | Upgraded DH-680F photovoltaic pile driver |
|---|---|
| Overall dimension | 5200 mm x 2350 mm x 2600 mm |
| Crawler plate width | 350 mm |
| Engine | 6-cylinder, 125 kW; brand To confirm |
| Drilling diameter | 90-500 mm |
| Drilling depth (spiral drill rod) | 0-20 m |
| Single propulsion stroke | 0-4000 mm |
| Reducer torque | 13000 N m |
| Main pump | Triple pump |
| Oil pump | 40 / 40 / 32 |
| Drill rod rotation speed | 80 r/min |
| Climbing angle | 30 degrees |
| Rock hardness | 6-20 F |
| Carriage tilt angle | 120 degrees |
| Drill arm swing angle | 150 degrees left and right |
| Sliding frame swing | 40 left and right |
| Overall weight | 5.8 t |
| Travel speed | 3-30 km/h |
Catalogue family
Truck-mounted drilling rig
A truck-mounted water well drilling rig for pneumatic and water drilling applications with a documented multi-axle drive configuration.

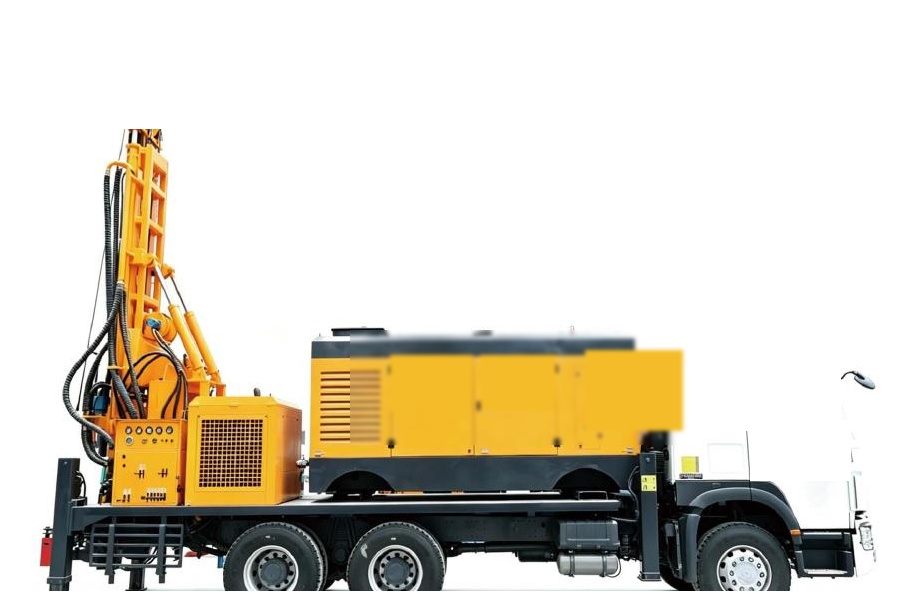

XV-T300m
Typical use: Truck-mounted water well drilling for pneumatic and water drilling applications.
A truck-mounted water well drilling rig with a listed pneumatic drilling depth of 500 m and water drilling depth of 200-350 m. The catalogue specifies a 178-325 mm drilling diameter, a 250 hydraulic-driven mud pump, and a multi-axle drive configuration.
| Truck engine | 330 HP engine; truck brand To confirm |
|---|---|
| Drive configuration | 2-front-axle & 8-rear-axle drive (2 x 8 drive) |
| Air compressor | Optional |
| Engine | 295 kW engine; brand To confirm |
| Drilling rig engine | 6108 engine; brand To confirm |
| Four-cylinder pump | 63 + 63 + 63 + 25 |
| Rotary motor | 490 + 490 |
| Torque | 11000 N m |
| Winch lifting capacity | 1.5 t |
| Drilling rig lifting capacity | 26 t |
| Mud pump | 250 hydraulic-driven mud pump |
| Drilling diameter | 178-325 mm |
| Maximum pneumatic drilling depth | 500 m |
| Water drilling depth | 200-350 m |
Buyer questions
Drilling rig FAQ
What is a water well drilling rig used for?
A water well drilling rig creates a borehole to access groundwater. The appropriate configuration depends on the target depth and diameter, the ground formation, the drilling method, and the access conditions at the site.
How do rotary drilling and DTH drilling differ?
Rotary drilling cuts the formation with a rotating tool and may use air, water, or mud to remove cuttings. DTH drilling uses a pneumatic hammer close to the bit and is commonly considered for hard-rock formations. The suitable method depends on the geology and project requirements.
When is reverse circulation drilling useful?
Reverse circulation returns cuttings through the inside of the drill string, which can support efficient removal and sampling in suitable formations. The choice also depends on borehole size, depth, ground conditions, and the available air or fluid system.
What is a core drilling rig used for?
A core drilling rig is used to recover cylindrical rock samples for mineral prospecting and engineering investigation. Core quality, target depth, drilling angle, ground conditions, and required diameter should be considered together.
How should I choose drilling depth and diameter?
Start with the required final borehole depth and diameter, then compare them with the machine range and the documented drilling method. Allowance for casing, tooling, ground conditions, and site access should be reviewed before selecting a model.
What is the difference between a crawler and a truck-mounted drilling rig?
A crawler-mounted rig is designed for on-site movement and positioning over uneven ground. A truck-mounted rig is intended to combine drilling equipment with road-going transport between work locations. The right choice depends on terrain, distance between sites, and project logistics.
What is a photovoltaic pile driver used for?
A photovoltaic pile driver installs or drills pile foundations for solar power station construction. Key project inputs include pile type, required drilling diameter and depth, terrain, rock hardness, and the available working space.
What information is needed before requesting a drilling rig quotation?
A useful request should include the application, target depth, required hole diameter, expected soil or rock formation, preferred drilling method, site access, mobility constraints, and any required auxiliary equipment such as an air compressor or mud pump.
AlloGo Sourcing
Recevoir les opportunites foreuses
Foreuses eau, carottage, solaire piling et questions techniques avant sourcing.
English
French
Arabic
